Grinding machines

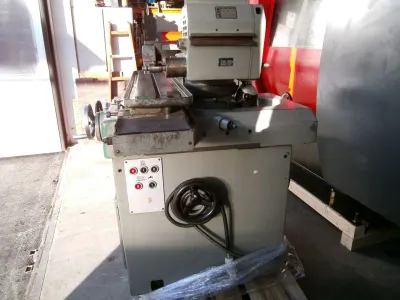

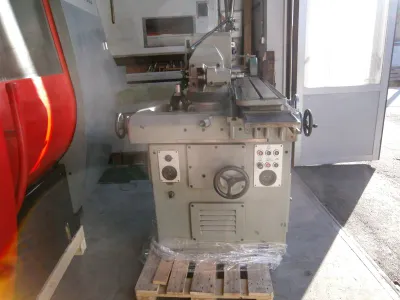

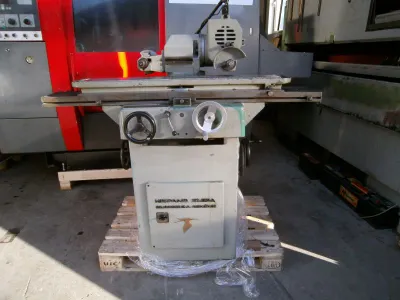

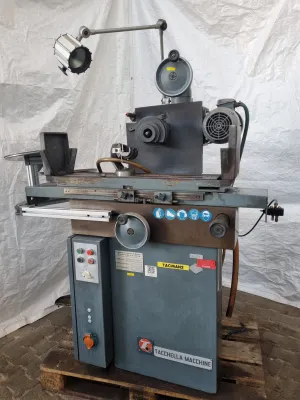

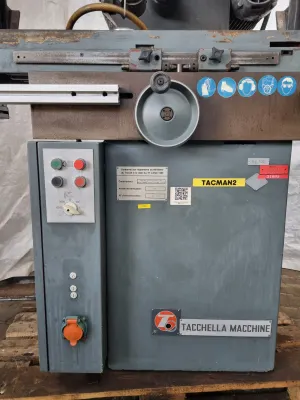

Zum Verkauf steht eine Schleifmaschine.

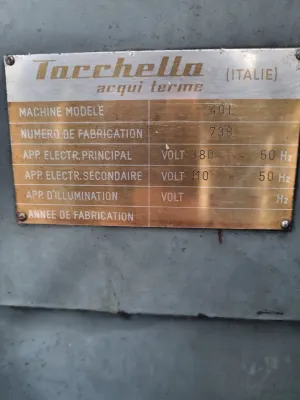

Model: 40L

Hersteller: Tacchella Macchine

Baujahr: 1987

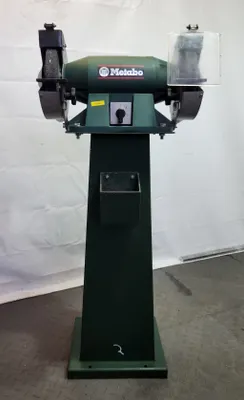

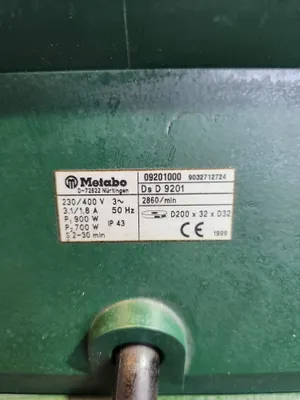

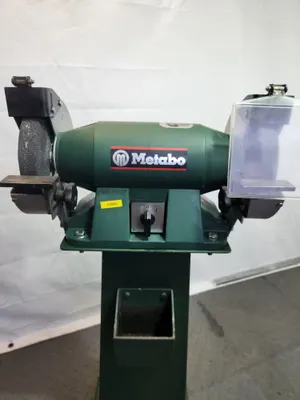

Es wird ein Metabo Doppelschleifbock, Doppelschleifmaschine des Typs Ds D 9201 mit Untergestell verkauft.

Auf den Bildern sieht man weitere Informationen.

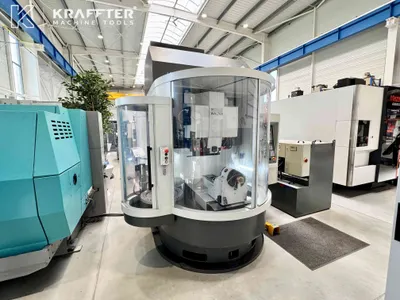

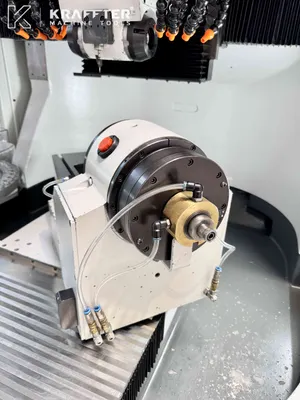

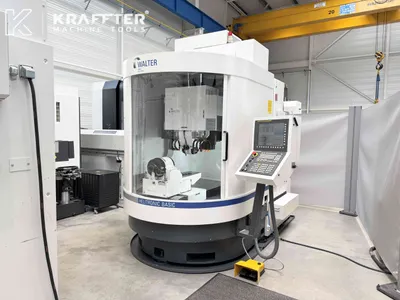

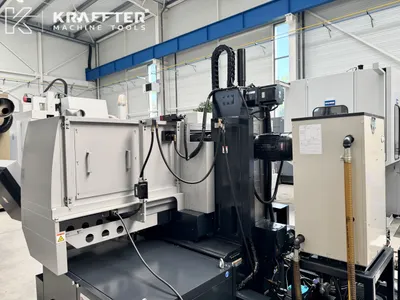

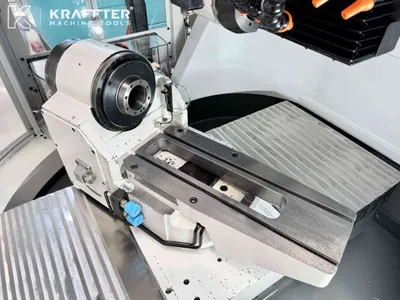

WALTER Helitronic Basic - CNC tool grinding machine

TECHNICAL CHARACTERISTICS :

Year of manufacturing : 2008

CNC control : FANUC 310i - MODEL A5

Software installed: Tool Studio Version 1.70.0.136

Number of axes: 5

Stroke X axis: 470 [mm]

Stroke Y axis: 330 [mm]

Stroke Z axis: 640 [mm]

Traversing feeds X, Y and Z axes: 15000 [mm/min]

A axis: 360 [°]

C axis: +/- 200 [°]

Max. workpiece lenght : complete processing: 255 [mm]

Max. workpiece lenght : peripheral grinding: 350 [mm]

Max. workpiece lenght : end face grinding: 280 [mm]

Max. grinding diameter: 320 [mm]

Max. grinding diameter with automated work table: 290 [mm]

Grinding spindle attachment: NCT

Grinding spindle diameter: 70 [mm]

Grinding wheel speed: 10500 [rpm]

Grinding spindle motor power: 7 [kW]

Max. diameter grinding wheel: 150 [mm]

Workpiece spindle nose: ISO 50

Max. part weight in part holder headstock: 20 [Kg]

Coolant pump pressure: 7 [bars]

Collant pump flow rate: 80 [l/min]

Lubrication tank capacity: 350 [l]

Supply voltage: 400 [V]

Number of running hours: 10755 [h]

Weight: 4500 [Kg]

EQUIPMENT INCLUDED:

x1 Software TOOL STUDIO 1.7

x1 ECO LOADER automatic tool loader

x1 tool palett (20 positions)

x1 automatic tool clamping unit

x1 RENISHAW tool probe

x1 calibration ball option : automatic calibration of X, Y and Z axes

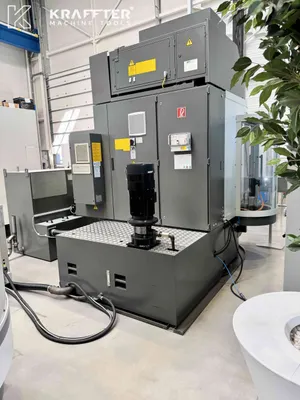

x1 DSL AIR TECHNOLOGY AES-SIGMA 20 type oil mist extractor

x1 lubrication tank

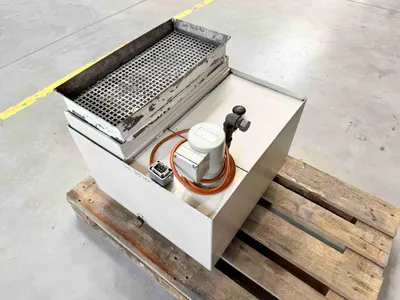

x1 paper band filtration unit

x1 GRUNDFOS coolant pump

x1 fire-fighting system (to be inspected by the purchaser by a qualified body)

x2 wheel flanges + spacers

x1 machine parameter backup

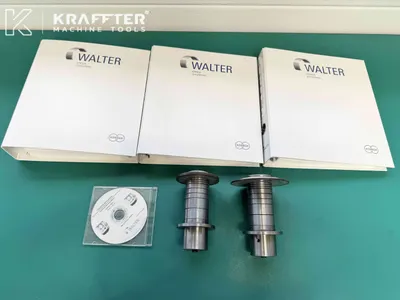

x3 technical manuals (paper format)

x1 technical documentation (CD-ROM format)

ADDITIONAL INFORMATION :

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Year of Manufacture: 1980

Net Weight: 3,500 kg

Condition: Used

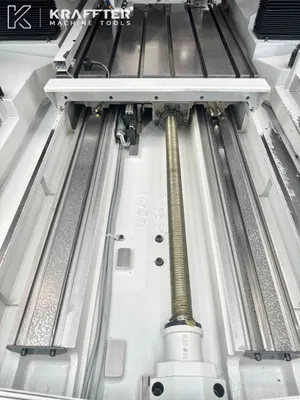

Machine Type: Horizontal Surface Grinding Machine

Control Type: CNC

Location: Eislingen Main Warehouse

Country of Origin: Germany

Availability: Immediately

Shipping Terms: Ex Works

Grinding Length: 600 mm

Grinding Width: 300 mm

Workpiece Height: 375 mm

Spindle Speed: 1000 – 3000 rpm

Grinding Wheel Dimensions: 300 × 50 × 76.2 mm

Grinding Spindle Power: 2.8 – 8.4 kW

Features:

- 3D-controlled profile dresser

- ELB-CNC Unicon control with integrated electronic handwheel

- Display and analog spindle load indicator

- Stepless adjustable cross feed

- Coolant system with magnetic roll separator

- Full enclosure

- Separate control cabinet

- Additional grinding wheel with flange

CNC Cylindrical grinder STUDER S33

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2006

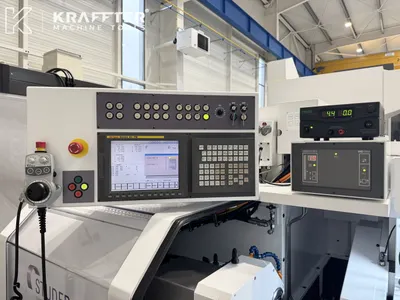

CNC control: FANUC 21i-TB

Software installed: StuderGrind

Centre distance: 1000 [mm]

Height of centers: 175

Stroke X axis: 285 [mm]

Min. Stroke speed X axis: 0.001 [mm/min]

Max. Stroke speed X axis: 5000 [mm/min]

Resolution X axis: 0.0001 [mm]

Stroke Z axis: 1150 [mm]

Min. Stroke speed Z axis: 0.001 [mm/min]

Max. Stroke speed Z axis: 10000 [mm/min]

Resolution Z axis: 0.0001 [mm]

B axis swivelling stroke: -15 [°] / +195 [°]

B axis indexing precision: Hirth 1 [°]

Automatic B axis: Yes

Workpiece spindle nose: MT5

Workpiece spindle min. speed: 1 [rpm]

Workpiece spindle max. speed: 1500 [rpm]

Max. part weight in part holder headstock between centres: 120 [Kg]

Type of attachment tailstock: MT3

Tailstock quill stroke: 35 [mm]

Tailstock quill diameter: 50 [mm]

Tailstock fine adjustment: +/- 40 [mm]

Supply voltage: 400 [V]

Total power required: 20 [kVA]

Weight: 5700 [Kg]

INCLUDED EQUIPMENT:

x1 internal grinding spindle type 102540B – speed: 40,000 [rpm]

x1 swiveling dressing attachment

x1 rotating dressing device DR.KAISER type C42 DC 058 – speed: 25,000 [rpm] – 0.17 [kW]

x1 frequency converter MAAS type SPS-9250

x1 pneumatic tailstock lift

x1 pneumatic upper-table lift

x1 longitudinal slide with rotary table - swiveling up to 8.5 [°]

x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°]

x1 C-axis for thread and form grinding

x1 workpiece probe MOVOMATIC C25

x1 contact control device DITTEL SENSITRON 2

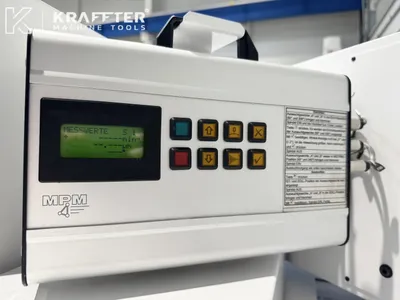

x1 semi-automatic wheel balancing device MPM type 3.BMT100M

x1 paper filtration unit STREULI AG

x1 mist extraction unit AFS Air Filter Systeme

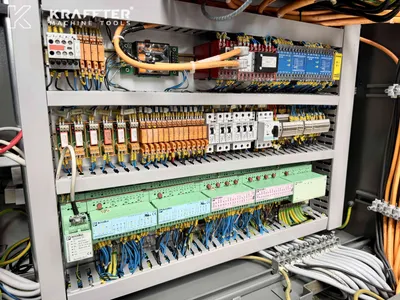

x1 electrical cabinet air conditioner

x3 external grinding wheel flanges

x2 lifting blocks

x1 axis bracket (for transportation of the machine)

x1 set of operating manuals (French, English, and German)

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Similar machine to the brands Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see surface grinder, lathe, machining center, milling machine.

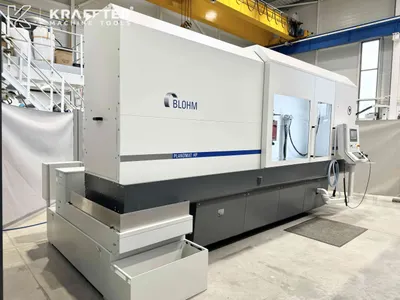

CNC surface grinder BLOHM Planomat 616 HP

TECHNICAL CHARACTERISTICS :

Year of manufacturing : 2015

CNC control : SIEMENS 840D SL

Maximum grinding lenght x width : 1600 x 600 [mm]

Stroke X axis (table movement) : 1700 [mm]

Min. Stroke speed X axis : 30 [mm/min]

Max. Stroke speed X axis : 30000 [mm/min]

Resolution X axis : 0.001 [mm]

Stroke Y axis (vertical movement) : 800 [mm]

Min. Stroke speed Y axis : 4 [mm/min]

Max. Stroke speed Y axis : 6000 [mm/min]

Resolution Y axis : 0.001 [mm]

Course axe Z (transverse movement) : 560 [mm]

Min. Stroke speed Z axis : 4 [mm/min]

Max. Stroke speed Z axis : 6000 [mm/min]

Resolution Z axis : 0.001 [mm]

Min. distance spindle nose / table : 150 [mm]

Max. distance spindle nose / table : 950 [mm]

Grinding spindle motor power : 15 [kW]

Max. diameter grinding wheel : 400 [mm]

Max. grinding wheel width : 30 [mm]

Grinding wheel bore : 127 [mm]

Dimensions of magnetic plate : 1600 x 600 [mm]

Machine dimensions : 5450 x 3560 x 2800 [mm]

Supply voltage : 400 [V]

Number of hours under power: 6840 [h]

Weight : 8000 [Kg]

EQUIPMENT INCLUDED:

x1 coolant tank + paper filtration system DGS type SBF150/650

x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3

x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13

x1 lifting dressing device for peripheral, side and profile dressing

x5 grinding wheel flanges

x15 grinding wheels Ø400 [mm]

x1 wheel balancing bench

x1 set of manuals + CD

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machine similar to the brands okamoto , jones shipman , jung , favretto , studer see also cylindrical grinder , lathe , machining centre , milling machine

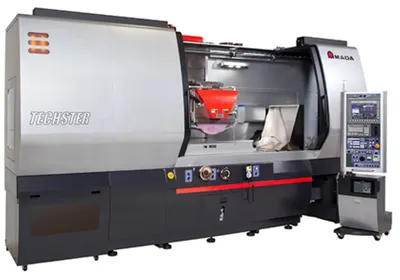

CNC Surface Grinder AMADA Techster 106

TECHNICAL CHARACTERISTICS:

CNC control : FANUC series 32i-B

Colour touch screen : 15 ["]

W axis travel (longitudinal axis) : 1300 [mm]

Min. Stroke speed W axis : 0.1 [mm/min]

Max. Stroke speed W axis : 40000 [mm/min]

Rapid traverse rate W axis : 40000 [mm/min]

X axis travel (transverse movement) : 660 [mm]

Min. Stroke speed X axis : 0.1 [mm/min]

Max. Stroke speed X axis : 5000 [mm/min]

Rapid traverse rate X axis : 5000 [mm/min]

Resolution X axis : 0.0001 [mm]

Stroke Y axis (vertical movement) : 750 [mm]

Min. Stroke speed Y axis : 0.1 [mm/min]

Max. Stroke speed Y axis : 500 [mm/min]

Rapid traverse rate Y axis : 2000 [mm/min]

Resolution Y axis : 0.0001 [mm]

Table length : 900 [mm]

Table width : 600 [mm]

Max. distance spindle nose / table : 750 [mm]

Max. load on table : 1500 [Kg]

Grinding wheel min. speed : 300 [rpm]

Grinding wheel max. speed : 2000 [rpm]

Grinding spindle motor power : 11 [kW]

Max. diameter grinding wheel : 405 [mm]

Max. grinding wheel width : 50 [mm]

Grinding wheel bore : 127 [mm]

Total power required : 29 [kVA]

Weight : 11000 [Kg]

EQUIPMENT / INCLUDED OPTIONS:

x1 electro-magnetic chuck 900 x 600 [mm]

x3 linear glass scales on the 3 linear axes

x1 workpiece probe

x1 paper tape filtration unit

x1 oil chiller DAIKIN AKZ149-C

x1 oil mist collector IFS type M 1600

x1 transformer

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed

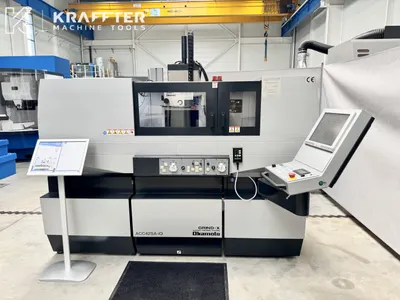

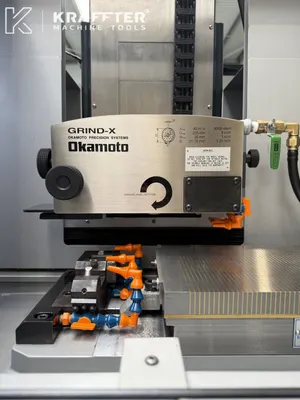

CNC Surface grinder OKAMOTO ACC42SA-IQ

TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2017

Colour touchscreen: Yes

Maximum grinding lenght x width: 400 x 200 [mm]

Stroke X axis (table movement): 510 [mm]

Min. Stroke speed X axis: 100 [mm/min]

Max. Stroke speed X axis: 20000 [mm/min]

Z axis travel (transverse movement): 220 [mm]

Min. distance spindle nose / table: 22.5 [mm]

Max. distance spindle nose / table: 357.5 [mm]

Max. load on table: 120 [Kg]

Grinding wheel min. speed: 1000 [rpm]

Grinding wheel max. speed: 3600 [rpm]

Grinding spindle motor power: 2.2 [kW]

Max. diameter grinding wheel: 205 [mm]

Max. grinding wheel width: 16 [mm]

Min. grinding wheel width: 6 [mm]

Grinding wheel bore: 31.75 [mm]

Number of running hours: 59 [h]

Supply voltage: 400 [V]

Total power required: 11 [kVA]

Weight : 2100 [Kg]

INCLUDED EQUIPMENT:

x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1

x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2

x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10

x5 grinding wheel flanges

x1 oil chiller

x1 transformer

x2 service keys

x1 balancing shaft

x1 set of axis-brackets for transport

STANDARD CONVERSATIONAL PROGRAMMING MODE:

Straight and angular dressing (standard)

Surface grinding, multiple plunge grinding, and face grinding (standard)

INCLUDED ISO PROFILING:

Wheel profiling

Contour machining of workpiece

Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece.

Precise positioning integrated: +/- 1 [μm]

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Similar machine to brands like Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see cylindrical grinder, lathe, machining center, milling machine.

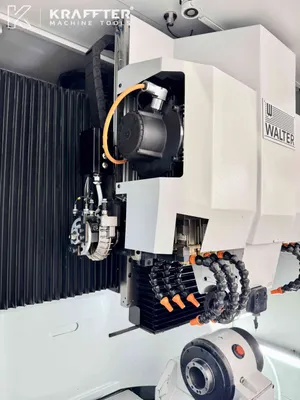

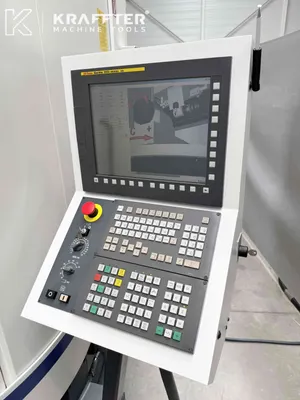

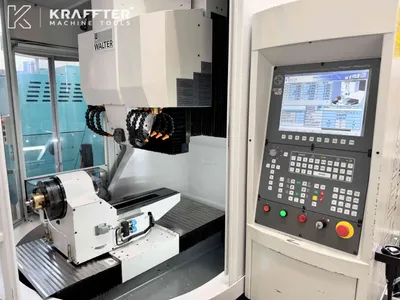

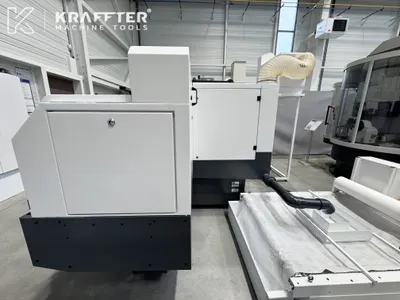

CNC tool grinding machine - WALTER Helitronic Power Production

TECHNICAL CHARACTERISTICS:

CNC control: HMC 500

Software installed: Tool Studio 2.1 R4

Number of axes: 5

Height of centers: 190 [mm]

Stroke X: axis 490 [mm]

Resolution X axis: 0.00001 [mm]

Stroke Y axis: 320 [mm]

Resolution Y axis : 0.00001 [mm]

Stroke Z axis: 660 [mm]

Resolution Z axis: 0.00001 [mm]

Traversing feeds X, Y and Z axes: 15000 [mm/min]

A axis: 360 [°]

C axis: +/- 200 [°]

Resolution C axis: 0.0001 [°]

Max. workpiece lenght: end face grinding: 320 [mm]

Max. grinding length: 350 [mm]

Max. grinding diameter: 320 [mm]

Grinding spindle attachment: NCT

Grinding spindle diameter: 80 [mm]

Grinding wheel max. speed: 7000 [rpm]

Grinding spindle motor power: 24 [kW]

Max. diameter grinding wheel: 200 [mm]

Internal workpiece spindle nose: ISO 50

Workpiece spindle max. speed: 60 [rpm]

Total power required: 35 [kVA]

Weight: 4650 [Kg]

EQUIPMENT INCLUDED:

x1 TRANSOR 12290-800A filtration unit

x1 MTA oil chiller model TAE 015

x1 DSL oil mist extractor model AES-GAMMA 30

x1 RENISHAW part probe

x1 disc-type tool loader 40 positions

x1 SCHUNK gripper

x2 grinding wheel arbor adapters

x1 fire protection system - to be inspected by the buyer through a certified organization

x1 electrical schematic manual

x1 Service Instructions manual

LICENSED WALTER WINDOW MODE (WWM) PACKAGES:

- Package 001 (cylindrical mills)

- Package 002 (tapered mills)

- Package 003 (drills)

- Package 004 (step drills)

- Package 006 (woodwork tools)

- Package 013 (reamers)

- Package 015 (insert seats)

- Package 016 (warmup program)

- Package 027 (flexible program)

- Package 090 (loader package)

- Package 091 (acm)

- Package 098 (loader package)

- Package 099 (loader package)

- Package 100 (reference data m.)

- HELICONE (flute calc. conical.)

- HELIDRILL (flute calc. drills)

- HELIFLUTE (flute calc. cyl. mill.)

- MCS (machine control .)

- SCHEIBE (wheels menu)

- TS_ADVANCED (toolstudio (v1.0-v.)

- TS_STANDARD (toolstudio (v1.0-v.)

- TS_STEPTOOLS (toolstudio (v1.0-v.)

LICENSED TOOLSTUDIO OPTIONS:

- Tool Studio 2.0 server/machinecontrol

- Tool Studio 2.0 standard license

- Tool Studio 2.0 advanced license

- Tool Studio 1.9 upgrade options

- Tool Studio 2.0 upgrade options

- Option steptools

- Option profile light (contour roughing ...)

- Option calibration w/ touch probe

- Option drills

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Präzise Werkzeugschleifmaschine für vielseitige Anwendungen in der Metallbearbeitung

Die Hispano Suiza Albula ist eine robuste Werkzeugschleifmaschine mit großem Verfahrweg und hoher Drehzahlflexibilität. Ideal geeignet für das Nachschleifen von Werkzeugen und präzise Schleifarbeiten im Maschinenbau.

Technische Daten:

– Spitzenhöhe: 140 mm

– Tischfläche: 150 × 1.050 mm

– Längsweg (manuell): 600 mm

– Querweg: 230 mm

– Höhenverstellung: 250 mm

– 2 Motordrehzahlen: 1.500 / 3.000 U/min

– 6 Schleifspindeldrehzahlen: 2.000 – 6.000 U/min

– Max. Schleifscheibendurchmesser: 250 mm

Besonderheiten:

– Ideal zum Nachschleifen und Feinschleifen von Werkzeugen

– Große Präzision und feinfühlig einstellbare Achsen

– Kompakte, stabile Bauweise

– Sofort einsatzbereit

Tool grinding machine DECKEL S11

TECHNICAL CHARACTERISTICS:

Grinding wheel diameter: 125 [mm]

Workpiece spindle nose: ISO 40

Paper filtration unit: No

Supply voltage: 400 [V]

Total power required: 2 [kVA]

Dimensions: 1100 x 800 x 1760

Weight: 520 [Kg]

EQUIPMENT INCLUDED:

x1 universal index head - Part N°: 255X0X

x10 dividing inserts for universal index head

x1 tailstock with transverse adjustment - Part N°: 2621000

x1 tailstock with vertical adjustment - Part N°: 2624000

x1 swivel bracket assembly - Part N°: 2626000

x1 universal wheel dresser - Part N°: 2628000

x1 universal setting gauge - Part N°: 2570000

x1 spiral and relief grinding attachment - Part N°: 2580000

x1 relief grinding slide - Part N°: 2673000

x1 machine vice - Part N°: 2635000

x1 opto-electronic measuring unit with miscroscope - Part N°: 2650012

x2 digital readouts RSF-Elektronik

x1 radius grinding attachment - Part N°: 2601X00

x1 LED lamp

x3 feet pads

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Machine for sharpening tools, milling cutters, taps, and drills.

Similar to brands such as Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter.

Also see cylindrical or surface grinders, lathes, machining centers, and milling machines.

Distance between centers: 650 mm

ID / OD

2-axis SONY digital read out

Coolant tank

Year of Manufacture: 1987

Net Weight: 1,500 kg

Condition: Used

Machine Type: Horizontal Surface Grinding Machine

Control Type: Conventional

Location: Göppingen

Country of Origin: Germany

Availability: Immediately

Shipping Terms: Ex Works

Grinding Length: 520 mm

Grinding Width: 160 mm

Workpiece Height: 300 mm

Magnetic Chuck (electric): 520 × 160 mm

Grinding Wheel Diameter: 230 mm

Space Requirement (approx.): 1.5 × 1.8 × 1.6 m (L×W×H)

Features:

- Height rapid traverse

- Hydraulic table drive

- External control cabinet with oil cooling for improved dimensional accuracy

- Accessories: Coolant system

Net Weight: 1,800 kg

Overall Dimensions: 1.4 m × 1.8 m × 1.6 m

Condition: Used

Machine Type: Horizontal Surface Grinding Machine

Control Type: Conventional

Location: Eislingen Main Warehouse

Country of Origin: Germany

Availability: Immediately

Shipping Terms: Ex Works

Grinding Length: 500 mm

Grinding Width: 200 mm

Workpiece Height: 250 mm

Spindle Speed Range (stepless): 1000 – 4700 rpm

Swiveling Sinus Magnetic Chuck Size: 400 × 175 mm

Features:

- Automatic feed

- Demagnetizing device

- Rapid traverse up/down

- Dressing device

- Stepless speed control

- Stepless cross feed

- Creep feed (plunge creep feed device)

- Central lubrication

- Single and double feed

- 2-axis digital display 'Heidenhain' with memory

- Coolant system

Net Weight: 1,800 kg

Overall Dimensions: 1.8 m × 1.6 m × 1.85 m

Condition: Used

Machine Type: Horizontal Surface Grinding Machine

Control Type: Conventional

Location: Eislingen

Country of Origin: Germany

Availability: Immediately

Shipping Terms: Ex Works

Grinding Length: 500 mm

Grinding Width: 200 mm

Workpiece Height: 250 mm

Control System: Heidenhain 2-Axis Digital Control

Clamping Surface: 200 × 600 mm

Features:

- Diaform profiling device

CNC JIG GRINDING MACHINE HAUSER S40-400

TECHNICAL CHARACTERISTICS :

Stroke X axis: 650 [mm]

Max. Stroke speed X axis: 4000 [mm/min]

Working feed X axis: 0 - 1800 [mm/min]

Stroke Y axis: 450 [mm]

Working feed Y axis: 0 - 1800 [mm/min]

Stroke Z axis: 130 [mm]

Min. Stroke speed Z axis: 0.5 [mm/min]

Max. Stroke speed Z axis: 12000 [mm/min]

Stroke frequency Z axis: max. 4 [Hz]

Stroke W axis: 500 [mm]

Planetary speed C axis: 5 - 250 [rpm]

Max. Stroke speed W axis: 800 [mm/min]

Stroke U axis (radial feed): 5.5 [mm]

Distance between columns: 750 [mm]

Table length: 770 [mm]

Table width: 630 [mm]

Clearance between grinding motor and table: 585 [mm]

Max. load on table: 500 [Kg]

Supply voltage: 400 [V]

Weight: 4550 [Kg]

ADDITIONAL INFORMATION :

x1 HI-CUT pack including:

-work area protection

-exhaust system with electrostatic air filter

-fire protection system (to be assessed by a qualified body)

-HTG-RWS-60 automatic belt filter cooling unit

x1 MSS (Multi-Sensoric System) tool detection device

x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin)

x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225

x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497

x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450

x1 intermediate plate for aligning motors and urbines - reference: 192940

x1 centring watch holder for grinding motor rotor - reference: 191790

x15 wheel holder cleats

x1 cable for grinding motor

Various tools

Full documentation

Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

The HAUSER S40-400 is a high-precision CNC coordinate grinding machine. This machine excels in tight tolerance environments such as contouring applications in the aerospace, automotive and medical industries. Thanks to its robust design and advanced capabilities, the HAUSER S40-400 is comparable to machines from well-known brands such as Moore. It can be integrated into workshops comprising Mägerle (Magerle), Studer, Moore, Kellenberger, Okamoto, Jones & Shipman, and ELB machines.

In addition to its performance, the HAUSER S40-400 integrates perfectly into workshops equipped with lathes, machining centres or CNC milling machines, offering a complete solution for high-precision grinding and machining of complex parts.
